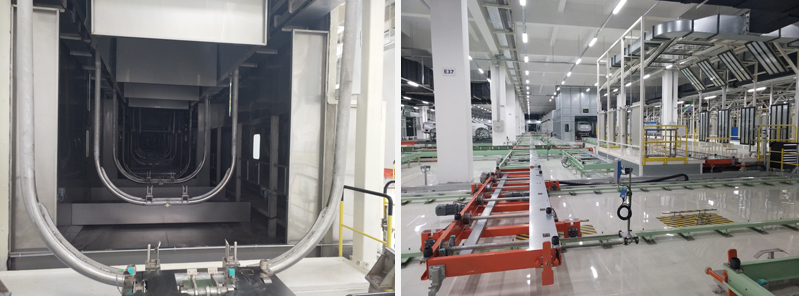

Geely Zhangjiakou painting conveyor line

First, the customer name:

Hyatt Auto Parts Manufacturing (Zhangjiakou) Co., Ltd.

Second, the project profile:

1. Scope of supply: all conveying equipment and its control part

2. Project introduction:

Geely Zhangjiakou painting undertakes the coating production task of CMA platform car and SUV body. The workshop produces CMA platform models, and undertakes the task of painting, anti-sounding, decorative and anti-corrosion of medium and high-grade car bodies and their spare parts. The scope of the project includes all conveyor systems in the paint shop and the mechanical, electrical and control functions associated with it. High quality equipment is required to meet Party A's high quality and environmental goals. Flexible production of future product equipment is also under consideration. The system design must guarantee a service life of more than 20 years. The conveying form is: pre-treatment, electrophoresis is the swing rod conveying line; the other is the sled conveyor line

The main parameters:

Product: The production line passes the maximum body-in-white size: L × W × H: 4900 × 1900 (opening 2200) mm × 1550 ( mm)

The workshop production line passes the maximum body-in-white weight: 550Kg/set.

Production program: 30JPH (net), 3 shifts / day

Production method: continuous through coating production line

Conveyor line form: pre-treatment, electrophoresis is the swing rod conveyor line; the other is the sled conveyor line
